Jms Infusion Set 1

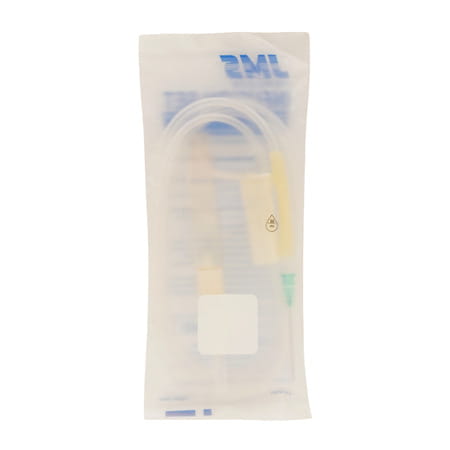

JMS Infusion Set is a sterile, single-use device for gravity-feed administration of intravenous fluids in clinical settings. It includes a bottle spike, flexible tubing, calibrated drip chamber and flow regulator. The set is latex free, non-pyrogenic and sterilised using ethylene oxide. It is intended for trained healthcare personnel using standard IV bottles and venipuncture devices.

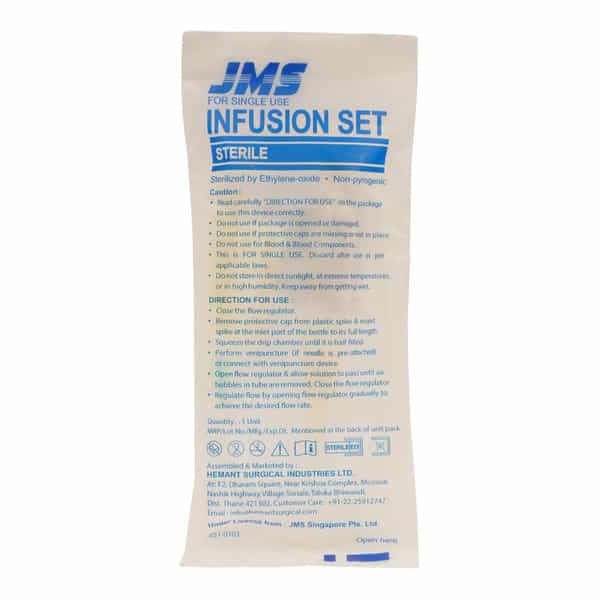

Close the flow regulator. Remove the protective cap from the plastic spike and insert the spike fully into the bottle inlet port. Squeeze the drip chamber until it is half filled. Perform venipuncture if a needle is pre-attached, or connect a venipuncture device. Open the flow regulator and allow solution to pass until air bubbles are removed from the tube. Close the regulator, then open it gradually to set the required flow rate.

• Gravity-feed design with an adjustable flow regulator
• Calibrated drip rate: 20 drops of distilled water = 1 ml +/- 0.1 ml
• Flexible tubing, bottle spike and drip chamber
• Sterilised with ethylene oxide and labelled non-pyrogenic
• Latex-free construction
• Protective caps on the spike
• Sealed sterile pouch with traceability fields

• For single use only. Do not reuse.
• Discard after use as required by applicable laws.
• Do not use if the package is opened or damaged.
• Do not use if protective caps are missing or not in place.
• Do not use for blood or blood components.
• Keep out of reach of children.
• Store away from direct sunlight, extreme temperatures and high humidity.
• Keep away from moisture.
• Read the label carefully before use.

• For intravenous fluid administration in clinical settings
• For gravity-feed infusion from standard IV bottles
• For procedures requiring a disposable sterile infusion set

• May help provide controlled fluid delivery through the adjustable flow regulator
• The calibrated drip chamber may support accurate flow measurement
• Latex-free construction may help reduce latex exposure
• The sterile, single-use design supports disposable use
