Dr. Odin Digital Blood Pressure Monitor (White)-Tsb-602S

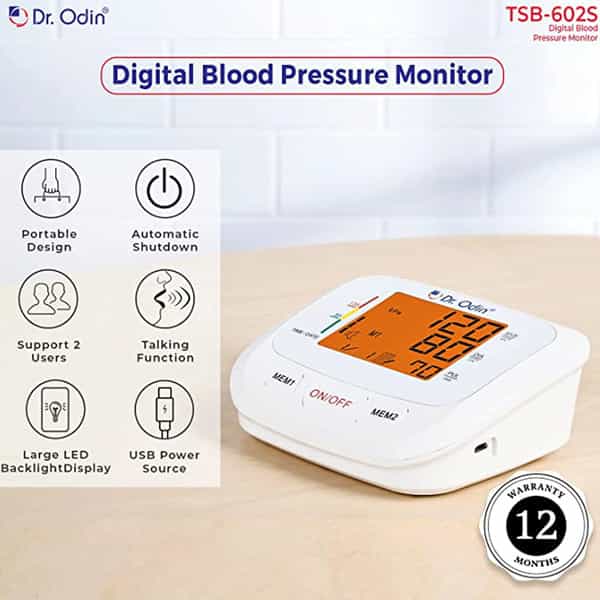

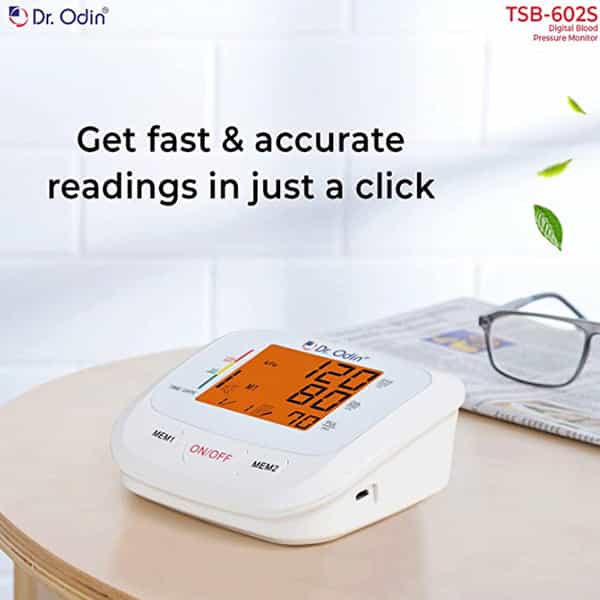

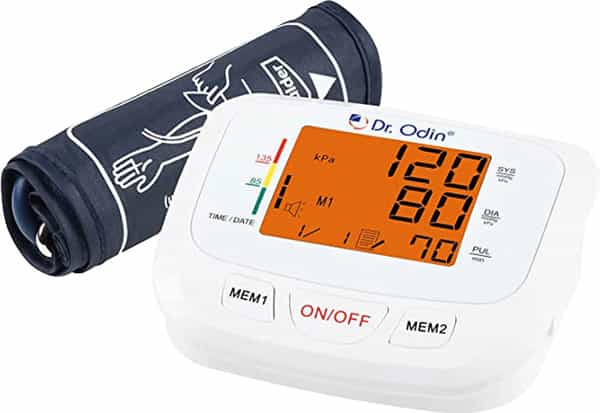

Dr. Odin TSB-602S is an automatic upper-arm blood pressure monitor. It measures blood pressure and pulse using an oscillometric method. It has a display for systolic, diastolic and pulse readings, date and time, and can alert you to an abnormal heartbeat or pulse. Voice guidance, dual-user memory, automatic power-off and a low-battery notification support convenient routine use.

• Rest quietly for 5 minutes before measuring. Avoid tea, coffee and exercise for 30 minutes beforehand.
• Sit upright with your back supported. Keep your feet flat on the floor and do not cross your legs.
• Wrap the cuff around your bare upper arm, 2 cm above the elbow. It should be snug but not tight.
• Place your arm on a flat surface at heart level. Relax your hand and keep still.
• Press the Start/On button. Do not talk while the cuff inflates and deflates.
• Read the systolic, diastolic and pulse values on the screen, then record them with the date and time.

• Automatic upper-arm monitor with oscillometric measurement.
• Intelligent pressure control may support a more comfortable measurement.

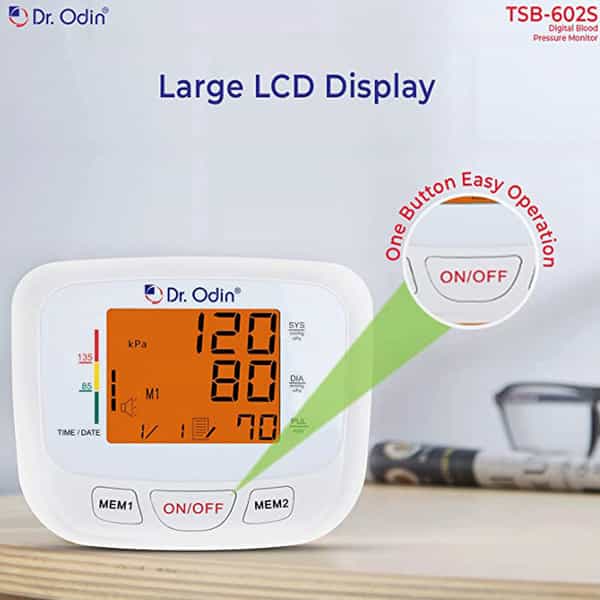

• Display for systolic, diastolic and pulse readings, with date and time.
• Talking function with voice guidance.

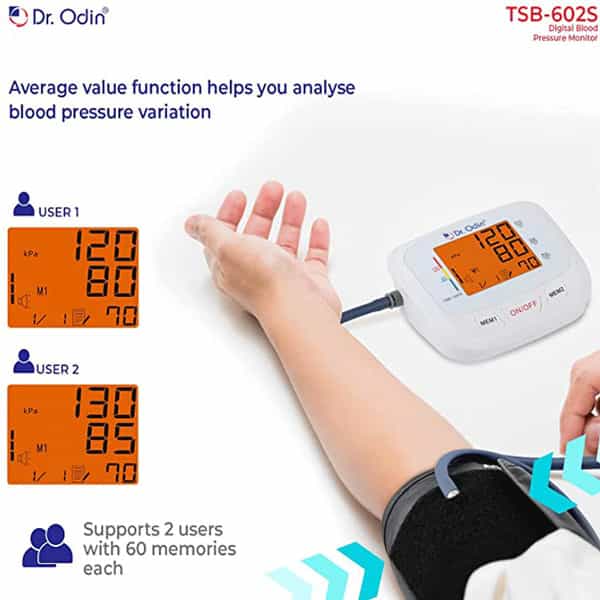

• Dual-user memory for separately storing readings.
• Low-battery notification and automatic power-off.

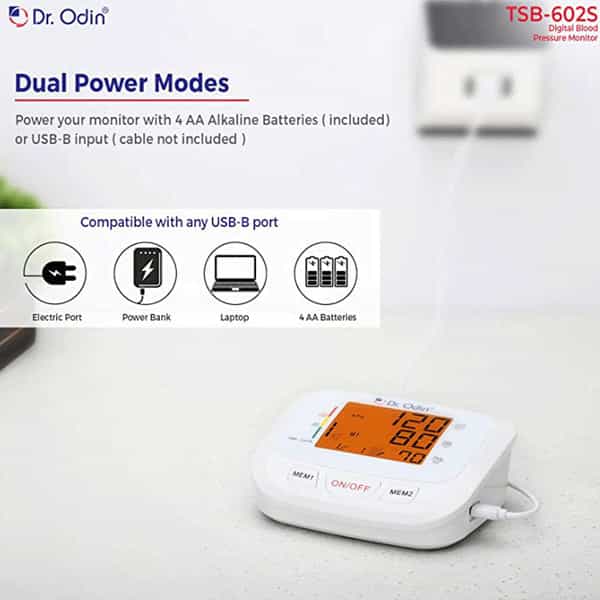

• Can be powered by AAA batteries or USB power.
• Pressure measurement range: 0 to 290 mmHg.
• Pulse measurement range: 40 to 180 beats/min.
• Pressure measurement accuracy: ±3 mmHg. Pulse measurement accuracy: ±5% of reading.

• Keep the monitor dry and away from water or moisture.
• Store it in a cool, dry place away from direct sunlight, high temperatures and extreme humidity.
• Do not drop the monitor, step on it or expose it to strong shocks or vibrations.
• Fold the cuff gently. Avoid tightly creasing, folding or twisting the cuff and air tube.
• Clean the monitor and cuff with a soft, dry or slightly damp cloth. Do not use harsh chemicals, thinners or alcohol.
• Remove the batteries before storing the monitor for a long time. Do not use batteries and an AC wall adapter at the same time.
• Do not disassemble, repair or service the monitor yourself.

• For routine upper-arm blood pressure and pulse checks at home.
• For keeping a record of readings for up to two users.
• For taking readings while travelling or away from home.

• Automatic operation may make routine readings easier to take.
• Voice guidance may help users follow the measuring steps.
• Dual-user memory may help two users keep their readings organised.
• Automatic power-off may help save battery power.
• An abnormal heartbeat or pulse alert may help draw attention to an unusual reading.
