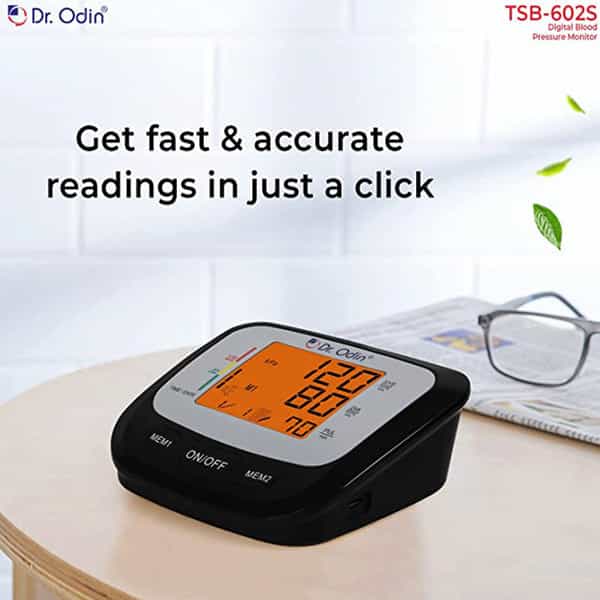

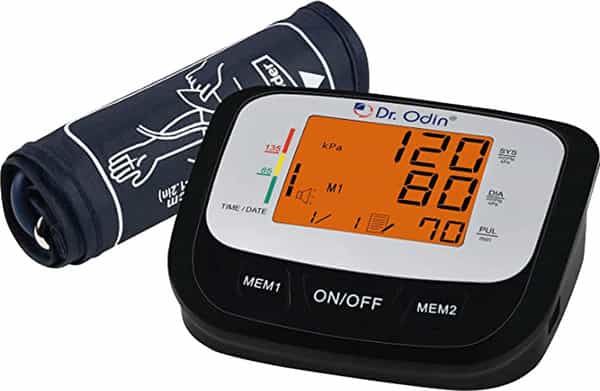

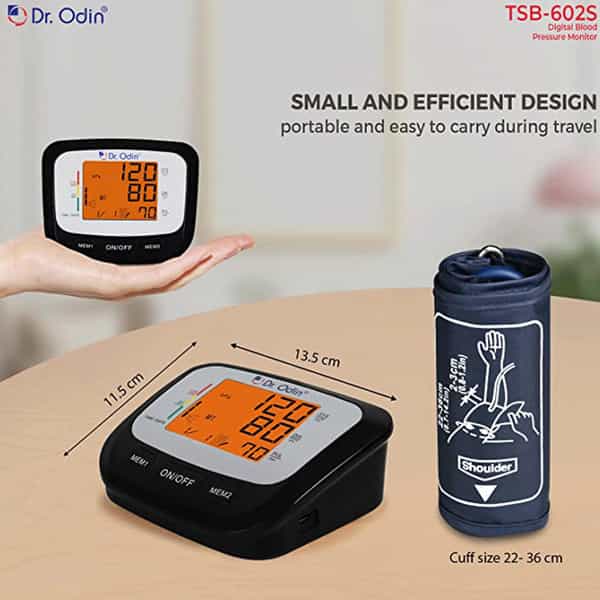

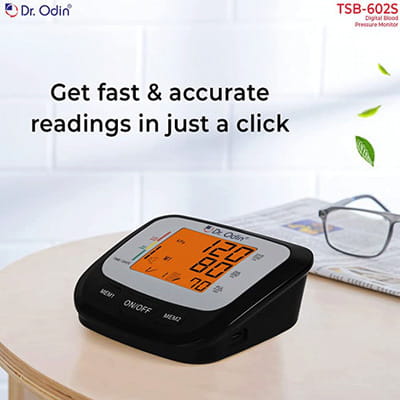

Dr. Odin Digital Blood Pressure Monitor (Black)-Tsb-602S

Dr. Odin TSB-602S is an automatic upper-arm digital blood pressure monitor. It uses an oscillometric measurement method and displays systolic, diastolic and pulse readings. It offers voice guidance, dual-user memory, automatic shutdown, and battery or USB power support.

• Sit quietly for 5 minutes before measuring. Avoid tea, coffee or exercise for 30 minutes before the reading.
• Sit upright with your back supported. Keep your feet flat on the floor and do not cross your legs.
• Wrap the cuff around your bare upper arm, 2 cm above the elbow. It should feel snug, not tight.
• Rest your arm on a flat surface at heart level. Relax your hand and keep still.
• Press the Start/On button. Stay still and do not talk while the cuff inflates and deflates.
• Read the Sys, Dia and Pulse values on the screen. Record them with the date and time.

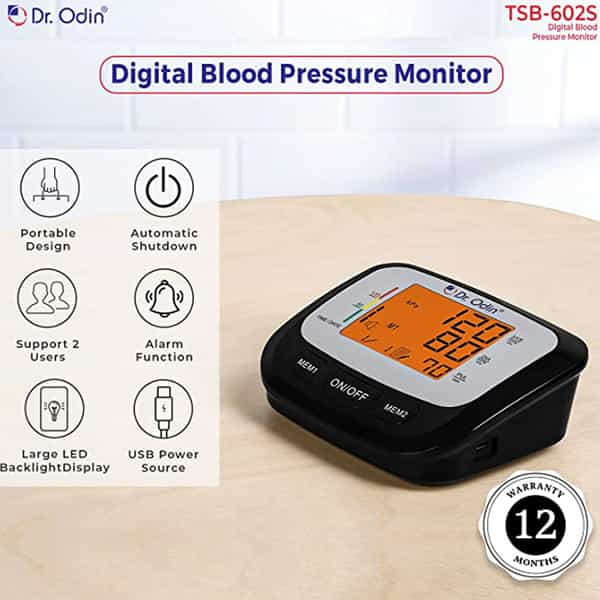

• Automatic upper-arm monitor with oscillometric measurement.
• Pressure measurement range: 0 mmHg to 290 mmHg.
• Pulse measurement range: 40 beats/min to 180 beats/min.
• Pressure measurement accuracy: ±3 mmHg.
• Pulse measurement accuracy: ±5% of the reading.

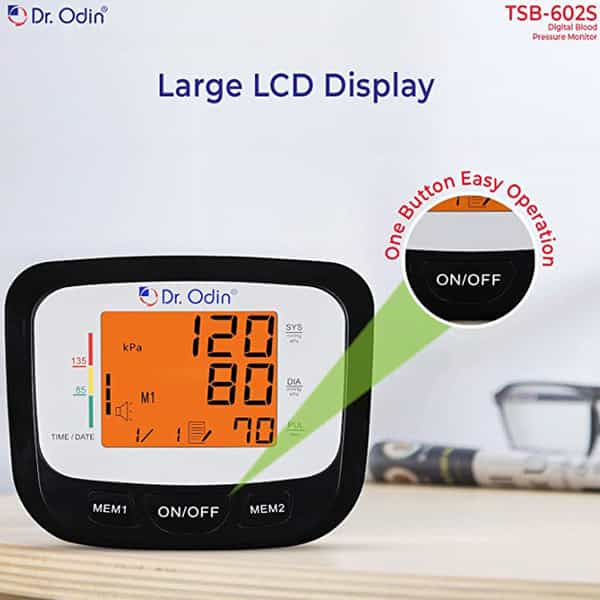

• Date and time display.

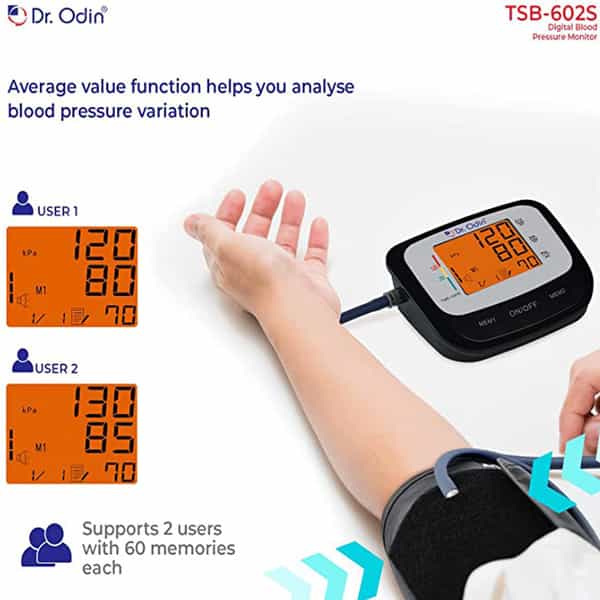

• Voice guidance and dual-user memory.
• Intelligent pressure control for comfortable measurement.

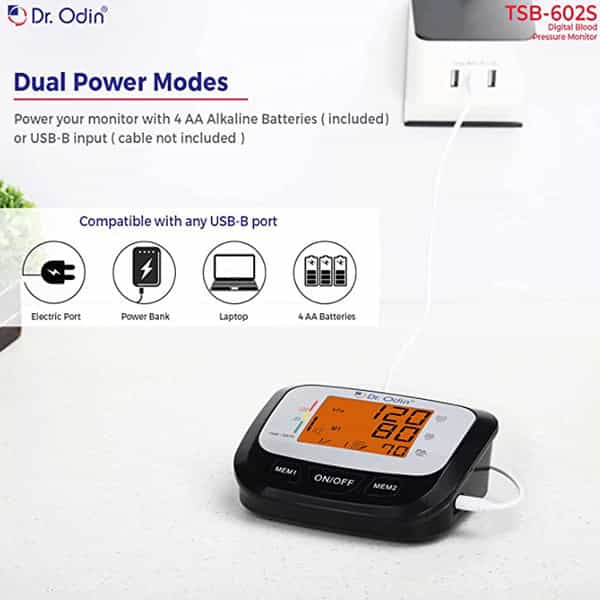

• AAA battery and USB power support.
• Automatic shutdown.

• Keep the monitor dry and away from water and moisture.
• Store it in a cool, dry place away from direct sunlight, high temperatures and extreme humidity.
• Do not drop the monitor, step on it, or expose it to strong shocks or vibrations.
• Do not tightly crease, fold or twist the cuff or air tube.
• Clean the monitor body and cuff with a soft, dry or slightly damp cloth. Do not use harsh chemicals, thinners or alcohol.
• Remove the batteries before storing the device for a long time. Do not use batteries and an AC wall adapter at the same time.
• Do not open, repair or service the product yourself.

• For measuring blood pressure and pulse readings.
• Suitable for use at home, while travelling, or in clinical settings.
• Useful for home users, caregivers and doctors taking blood pressure readings.

• Voice guidance may make the measuring steps easier to follow, especially for elderly users.
• Stored readings may help users track their blood pressure readings over time.
• Dual-user memory may help two people keep their readings separately organised.
• Automatic shutdown may help save battery power after use.
• Battery and USB power options may offer more flexibility during use.
